BIOPAK

THE BIOMASS FIRED BOILER

BioPack is a compact, High efficiency boiler with large furnace volume, performing extremely well with Biomass / Agro-waste fuels.
F E A T U R E S:
- Tall furnace increases the residence time of flue gases allowing the fuel to power completely.
- Variable frequency speed fuel feeders allows percent control of fuel feeding.
- High pressure secondary airjets located at multiple levels in the furnace ensuring turbulence and good mixture of volatile in the fuel with air for complete combustion.
- Automatic screw or hydraulic pusher feeder systems.

Read More Catalogue Video

FBC

•Specially designed for Agro waste / Biomass Fuels.
•Three pass, High Efficiency Boiler.
•Packaged Boiler, no welding or expanding at installation site.
•Large Ash setting zone.
•Over bed feeding of Biomass / Agro-waste field like saw dust, rice husk, groundnut shell, almond shell.
•Special SS Nozzles ensuring long operating life
•Available in
- AFBC - Atmospheric Fluidised Bed Combustion.
- SFBC - Semi Fluidised Bed Combustion.

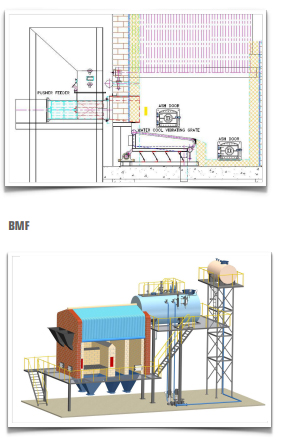

•It consists of moving & fixed grate bars placed alternately in a staircase outline.
•The moving grates overlap the fixed grates and move it towards the ash zone.
•Fuel retention time on the grate is more which results in complete combustion.
•Speed of the grate & stroke length can be controlled and adjusted for complete combustion.
•Combustion air controlled in each zone.
•Suitable for a large variety of Biomass Agro-waste fuels.
•Specially designed for fuels of larger sizes such as cotton stalk, rice straw, soya straw, bagasse, palm bunch, agro-waste, briquettes.
